Delivering the world’s most natural feedback reduction and adding focus to your primary sources, the 545 is a truly unique tool for improving your live sound.

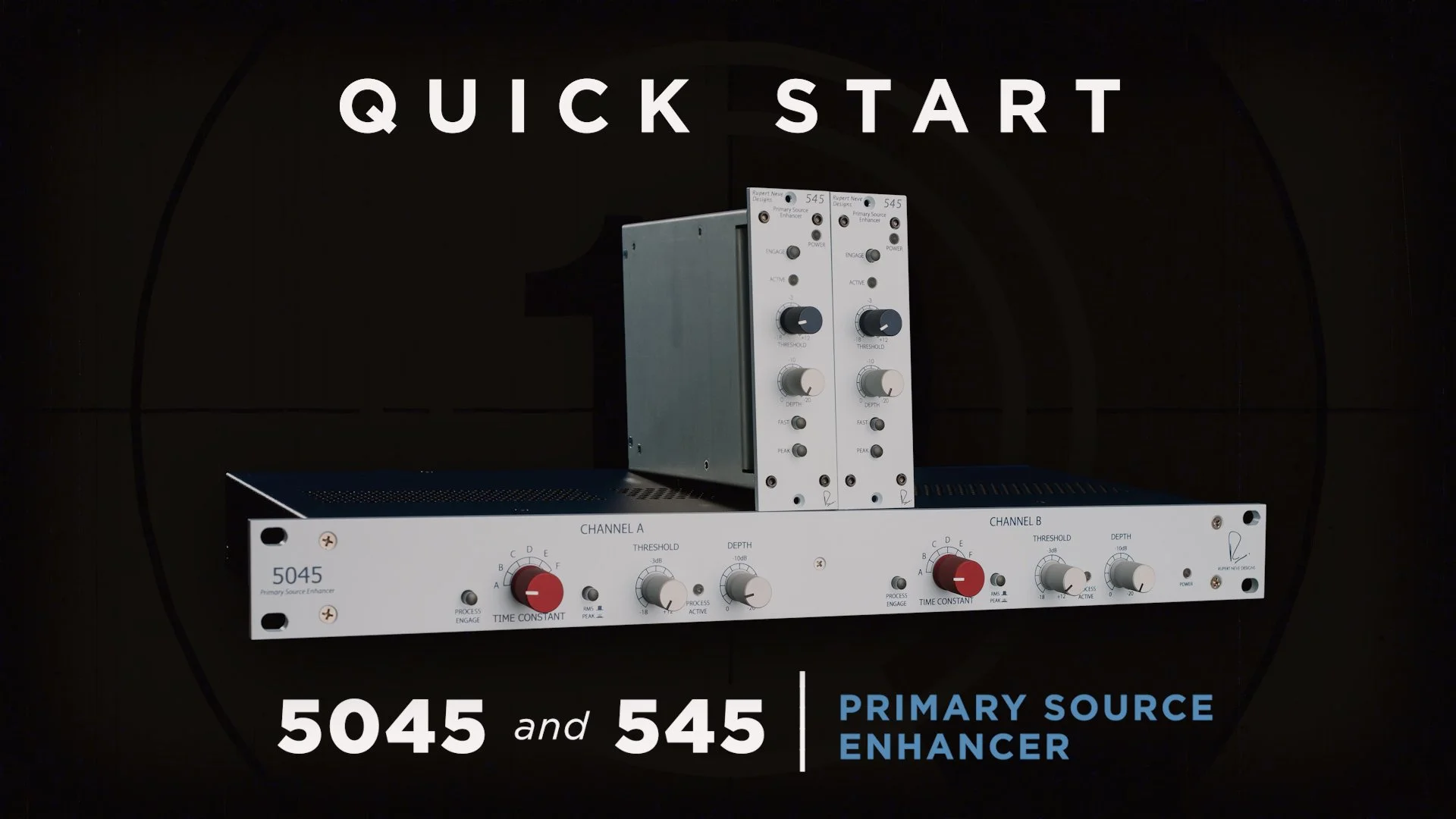

Based around the circuitry in the acclaimed Portico 5045 – which has benefited countless tours, arenas, houses of worship and broadcast stages worldwide – the 545 is a mono device for vocal or instrumental applications, and is compatible with any 500-Series rack. Exceptionally useful at reducing feedback without negatively impacting the sonic integrity of the source, the 545 effectively increases the level of a live microphone signal before feedback occurs by up to 20dB. With simply laid out, easily adjustable controls, the 545 is an invaluable addition to any setup where feedback or reverberation are problematic.
The 545 shares some traits with conventional “noise gates”, but operates on a different principle. One common aspect is that both reduce the gain during the absence of signal – or more specifically, both begin to attenuate when the level of a signal falls below a certain user-defined threshold. The 545 senses when someone is speaking or singing into the mic and allows the signal to pass through, and senses when the person has stopped talking or singing and reduces the gain appropriately, reducing the system’s tendency to feed back.
Importantly, the 545 does not utilize filtering or digital processing to achieve its significant benefits. Built around Rupert Neve Designs’ custom input and output transformers, its all-analog circuitry provides superb control and sonic performance without compromising the integrity of the source material. This makes the 545 the most intuitive, natural-sounding and effective method of feedback reduction available on the market.
With a minimal control set, the 545’s ease of use makes it ideal even for circumstances where a full-time or experienced engineer is not readily available, and allows for rapid adjustments on-the-fly even during performances.
Illuminated push-button that engages the Primary Source Enhancer’s effect.
This LED indicates when the 545 is actively affecting signal – a.k.a. when the input signal has overcome the enhancement threshold. Since this LED should generally be illuminated when the desired source is present (a vocalist singing, for example) it is extremely helpful in setting up the 545 for use.
Sets the dBu level at which the Primary Source Enhancer engages.
The DEPTH knob controls the maximum amount of effect from the 545 – or in other words, how much attenuation is applied after the input signal falls below the set THRESHOLD. By rotating the DEPTH control clockwise from 0dB towards -20dB, the 545 will attenuate the input signal more dramatically, letting the user find the perfect balance between audibility of the Primary Source Enhancement effect and feedback reduction.
The FAST control is an illuminated push-button that selects between two available time constants, tuning the 545’s response by determining how quickly the attenuation occurs in the quiet sections between words or phrases. Without this button pressed, the 545 achieves a slower attack and release that is useful as a starting point for most sources. Pressing the FAST push-button engages the faster attack and release time constant, useful on more dynamic sources or passages where faster transient detection is necessary.
Illuminated push-button that selects between RMS and Peak detection modes. When illuminated, the 545 is in PEAK mode – useful for detecting faster transient peaks, and for creative dynamic envelope shaping. When not illuminated, the 545 is in RMS mode, which utilizes a slower, more averaged response characteristic in the sidechain.
“The 5045 is the one piece of hardware I can’t do a show without. It let’s me eq the mic for how I want it in the mix instead of worrying about feedback. It’s especially game changing when the vocalist is out in front of the mains.”
“Without the 5045, I wouldn’t be able to do my job.”
“It’s great for shutting the mic down when it’s not in use, while leaving the envelope of the source sounding natural. We are using 965 capsules – they can be sensitive, so it’s great for getting more gain without building up feedback. I’ve found since using the 5045, reverbs and delays sound tighter.”
“The 5045 yielded a 14 to 15 dB increase in level, with no feedback, glitches or choppiness.”
“She’s a very dynamic singer and there are times when she will be out in front of the main hang and side hang speakers – and that’s something I have to be really careful about, feedback-wise. Since we started using the 5045 I haven’t had a single frequency take off yet.”
